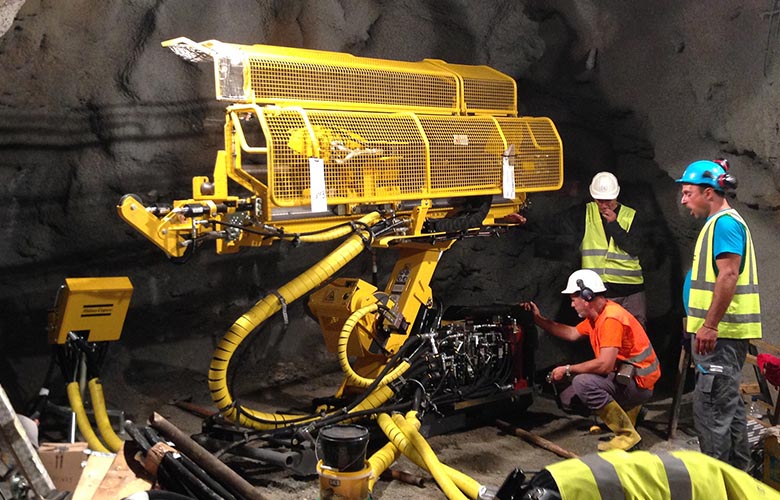

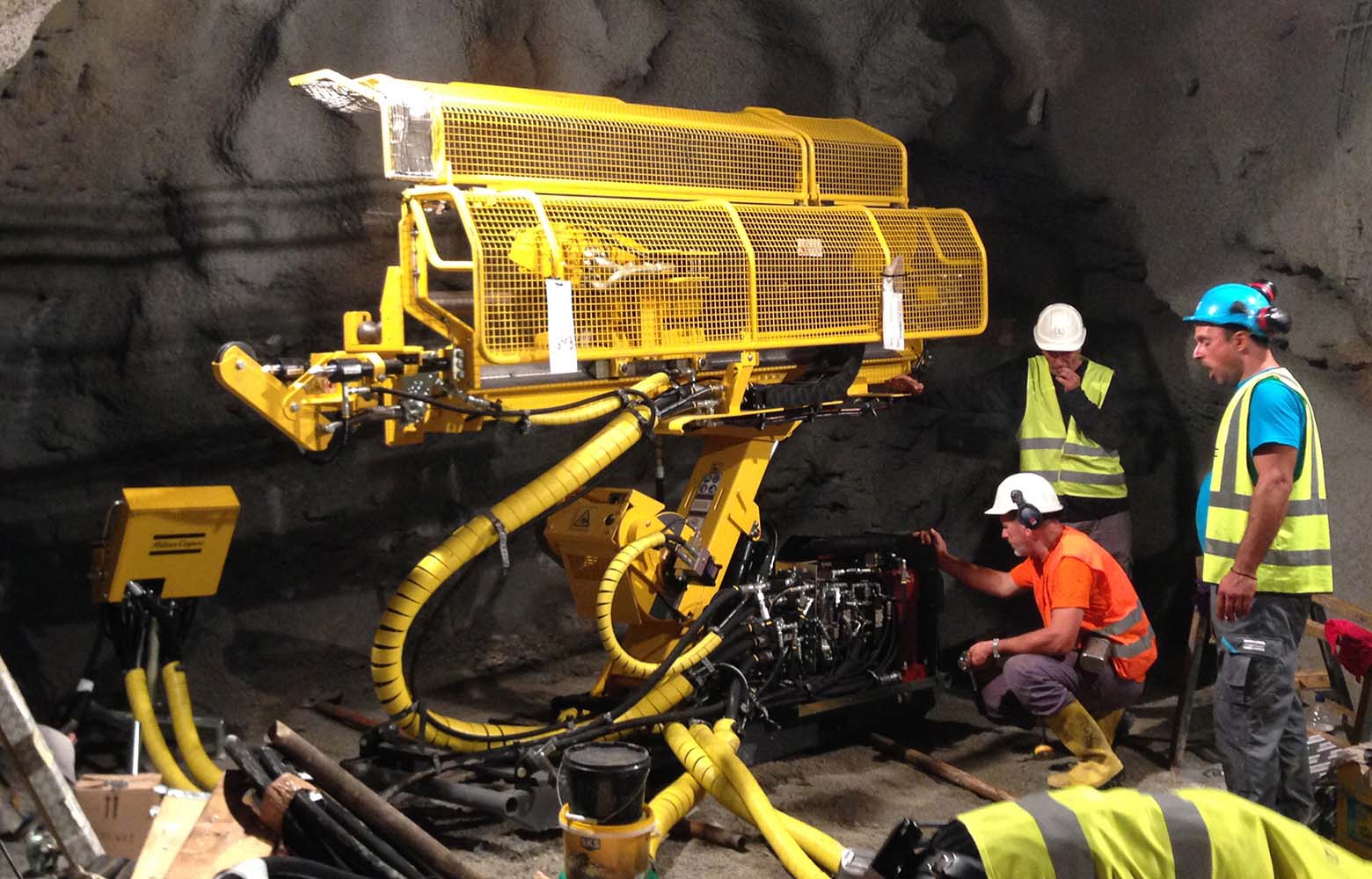

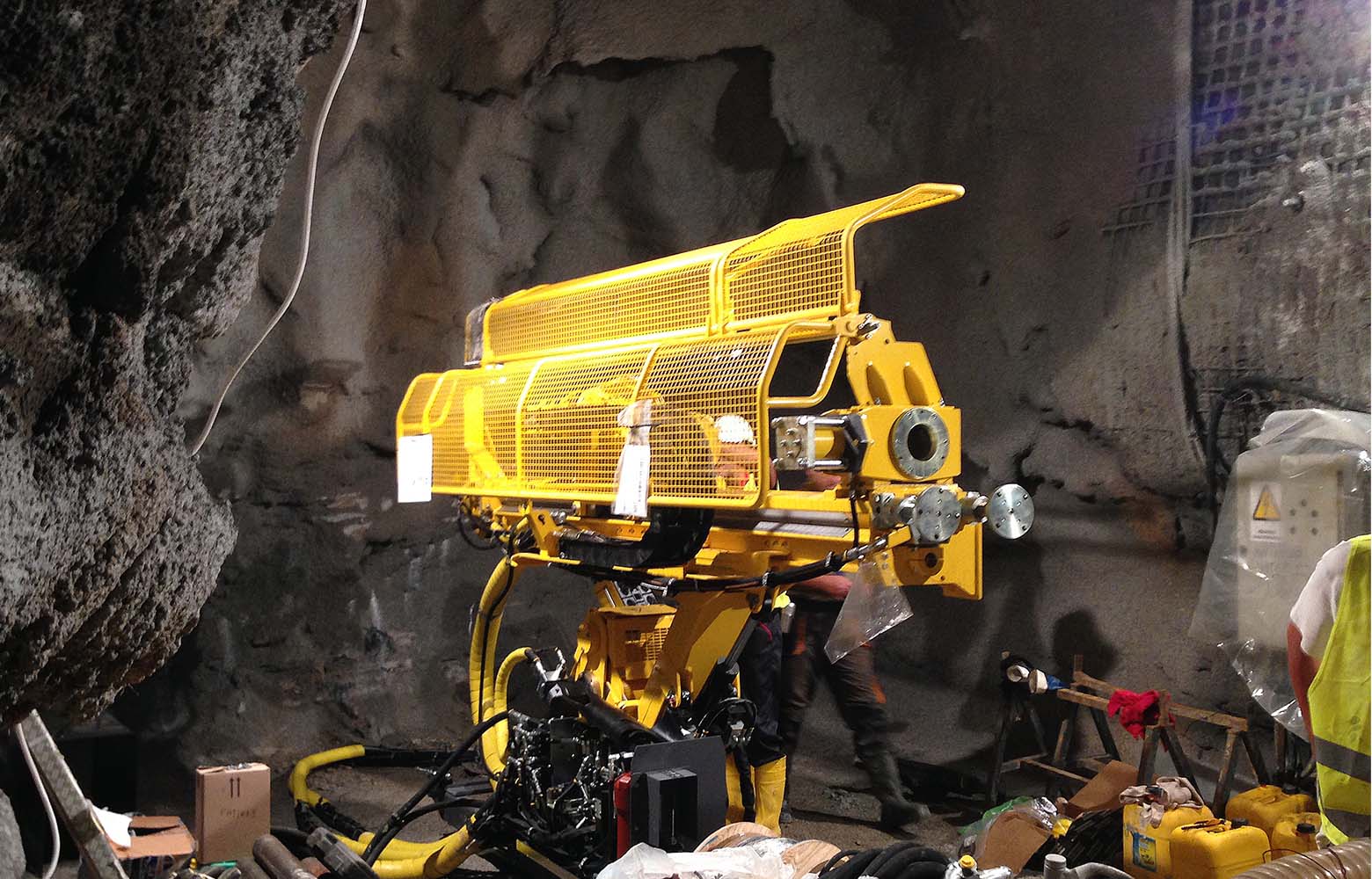

Atlas Copco Diamec U6 PHC

Atlas Copco Diamec U6 PHCAtlas Copco Diamec U6 PHC Atlas Copco Diamec U6 PHC

Rig Description

Powerful core drilling rig for underground operations with wireline (A-H) and conventional core barrels. Improved performance and reliability with new drilling design and hydraulic control system.

  • Wireline
  • Crawler
  • PQ, HQ, NQ

Atlas Copco Diamec U6 PHC Specs

  • PU6E PHC / 90kW (122hp)
  • RPM : 1480
  • Electrical motor
  • Cooling : water type oil cooler
  • Max pull force : 89kN
  • Feed length : 1800mm
  • Rotation speed : 1200r/min
  • Mud pump : Trido 140H (140lt/min, 70bar)
  • Drilling Capacity : 900m (ΝQ)
  • Wireline hoist : 1300m
  • Max drum pull : 10kN
  • Drilling angle : 90 o to -90 o
