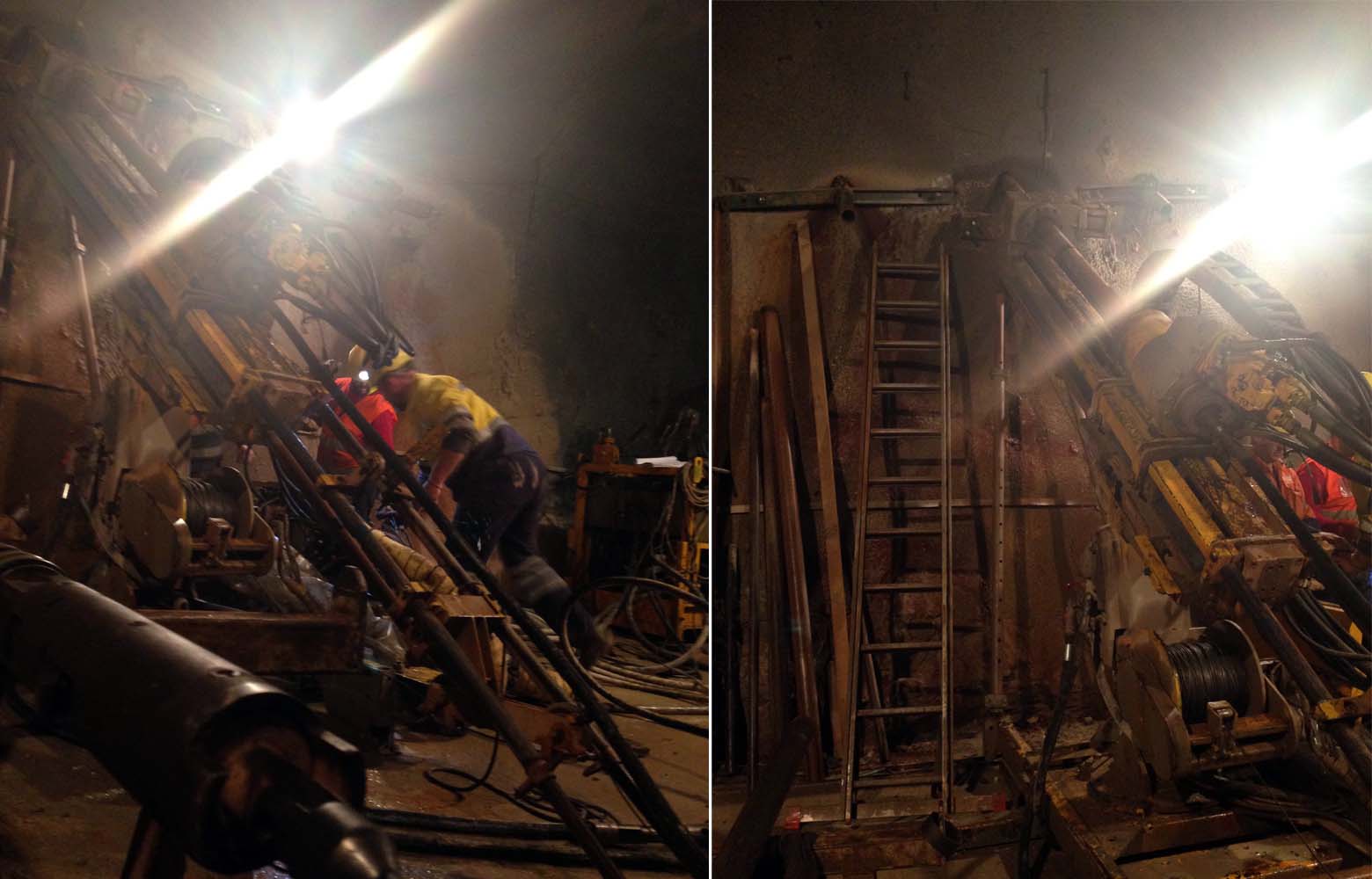

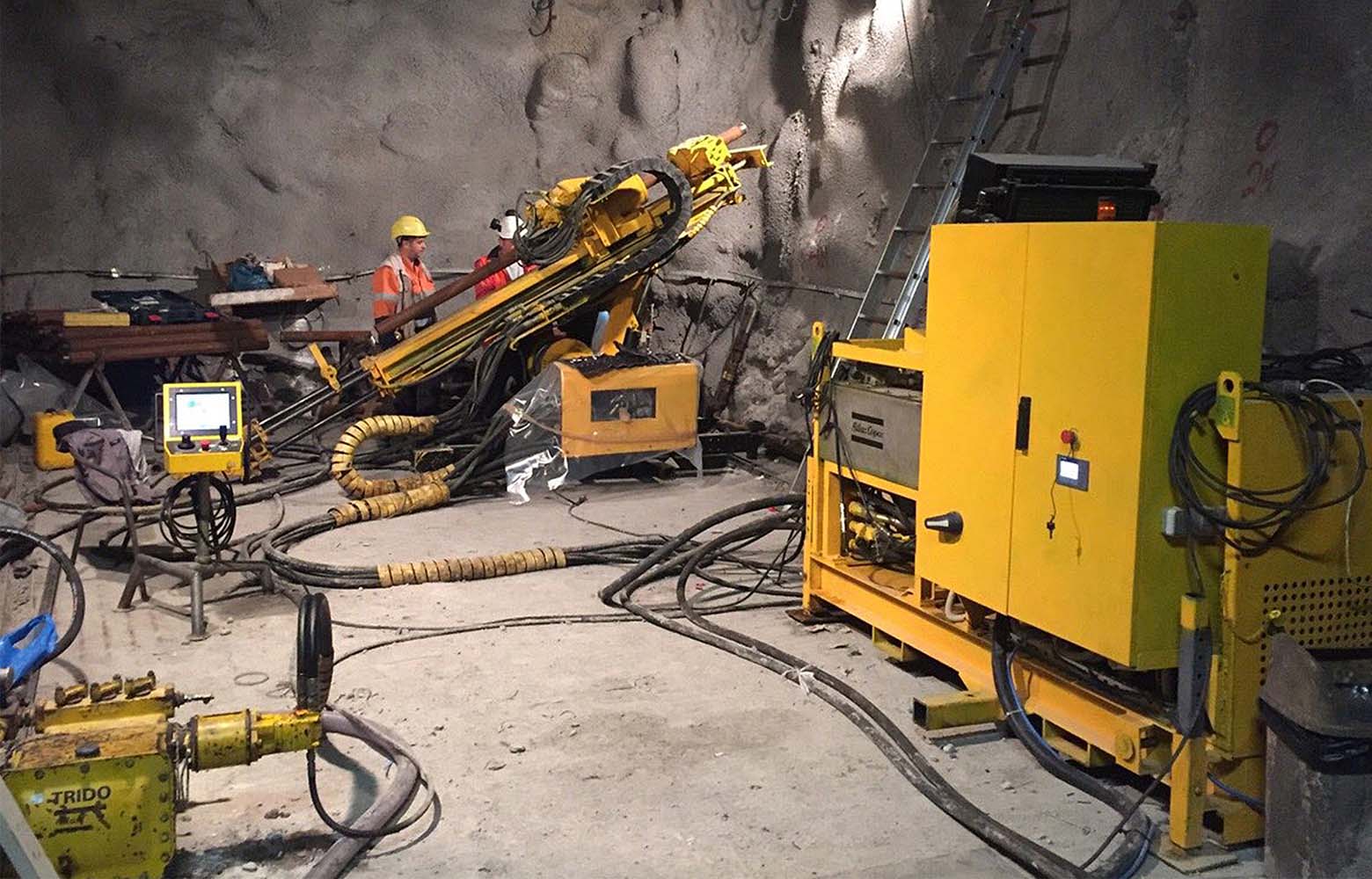

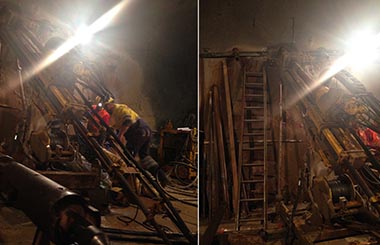

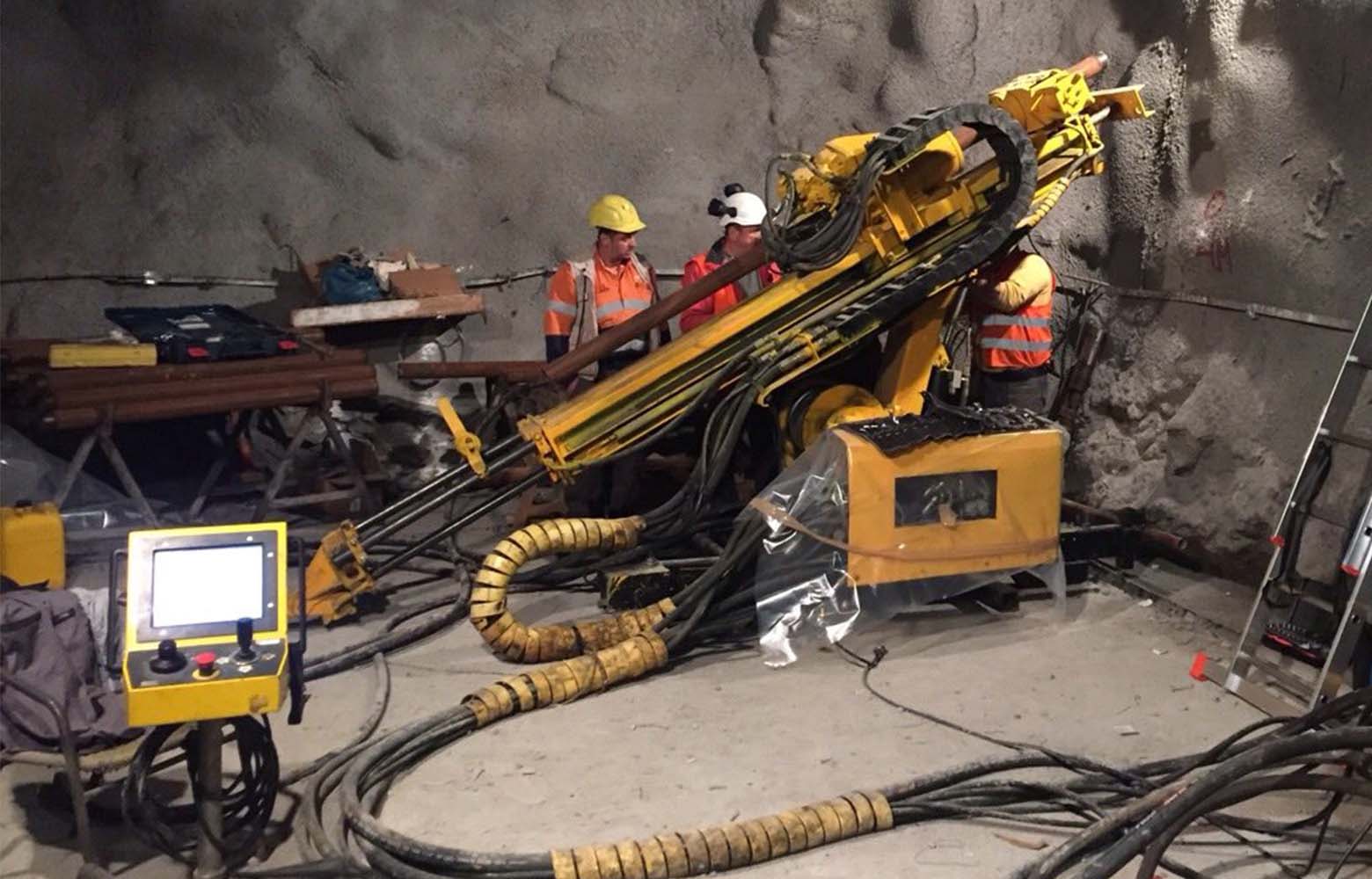

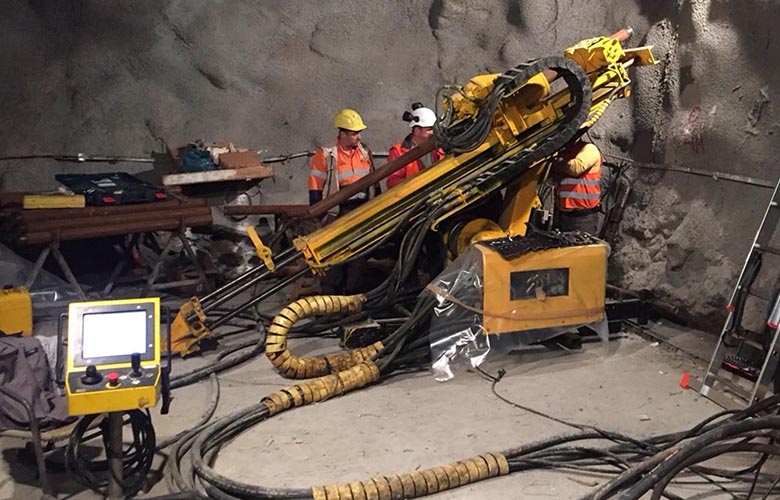

Atlas Copco Diamec U6 APC Details

Atlas Copco Diamec U6 APC Atlas Copco Diamec U6 APC Atlas Copco Diamec U6 APC

Rig Description

Powerful core drilling rig for underground operations with wireline (A-H) and conventional core barrels. Improved performance and reliability with new drilling design and hydraulic control system.

  • Wireline
  • Skid
  • PQ, HQ, NQ

Atlas Copco Diamec U6 APC Details Specs

  • DEMAC Y2-280M-4 / 90kW (122hp) RPM : 1480 Electrical motor : PU6E Cooling : water type oil cooler Max pull force : 85kN Feed length : 1400mm Rotation speed : 1400r/min Mud pump : Trido 140H (140lt/min, 70bar) Drilling Capacity : 900m (ΝQ) Wireline hoist : 1300m Max drum pull : 10kN Drilling angle : 90 o to -90 o
  • RPM : 1480
  • Electrical motor : PU6E
  • Cooling : water type oil cooler
  • Max pull force : 85kN
  • Feed length : 1400mm
  • Rotation speed : 1400r/min
  • Mud pump : Trido 140H (140lt/min, 70bar)
  • Drilling Capacity : 900m (ΝQ)
  • Wireline hoist : 1300m
  • Max drum pull : 10kN
  • Drilling angle : 90 o to -90 o
