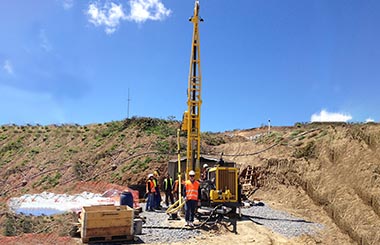

Atlas Copco Christensen CS14 Rig Details
- Home
- Rigs and Equipment
- Atlas Copco Christensen CS14 Rig Details
Rig Description
The CS14 represent the most flexible rig size in the Christensen range of surface core drilling rigs. Medium-sized, the Christensen 14 range is ideal for a variety of drilling applications – suitable for most depths or types of terrain. All models have a drill capacity of 1200 meters (NQ), and are equipped with a powerful feed system, main winch and Stage 3A/Tier3 ready engines which reduce emission levels.
- Wireline
- Trailer
- PQ, HQ, NQ
Atlas Copco Christensen CS14 Rig Details Specs
- Cummins QSB 6.7lt Τier 3 / 153kW (208hp) RPM : 1900 Diesel turbocharged Cooling : water Rod holding force : 130kN Chuck holding capacity : 178kN Mast pull force : 138kN Mast thrust force : 59.6kN Mud pump : Trido 140H (140lt/min, 64bar) Max Torque (Rotation Unit) : 5100 Nm Max Speed (Rotation Unit) : 1300 rpm Drilling Capacity : 1200m (ΝQ) Wireline hoist : 2000m Max drum pull : 13kN Drilling angle : 45 o -90 o
- RPM : 1900
- Diesel turbocharged Cooling : water Rod holding force : 130kN Chuck holding capacity : 178kN Mast pull force : 138kN Mast thrust force : 59.6kN Mud pump : Trido 140H (140lt/min, 64bar) Max Torque (Rotation Unit) : 5100 Nm Max Speed (Rotation Unit) : 1300 rpm Drilling Capacity : 1200m (ΝQ) Wireline hoist : 2000m Max drum pull : 13kN Drilling angle : 45 o -90 o
- Cooling : water
- Rod holding force : 130kN
- Chuck holding capacity : 178kN
- Mast pull force : 138kN
- Mast thrust force : 59.6kN
- Mud pump : Trido 140H (140lt/min, 64bar)
- Max Torque (Rotation Unit) : 5100 Nm
- Max Speed (Rotation Unit) : 1300 rpm
- Drilling Capacity : 1200m (ΝQ)
- Wireline hoist : 2000m
- Max drum pull : 13kN
- Drilling angle : 45 o -90 o
