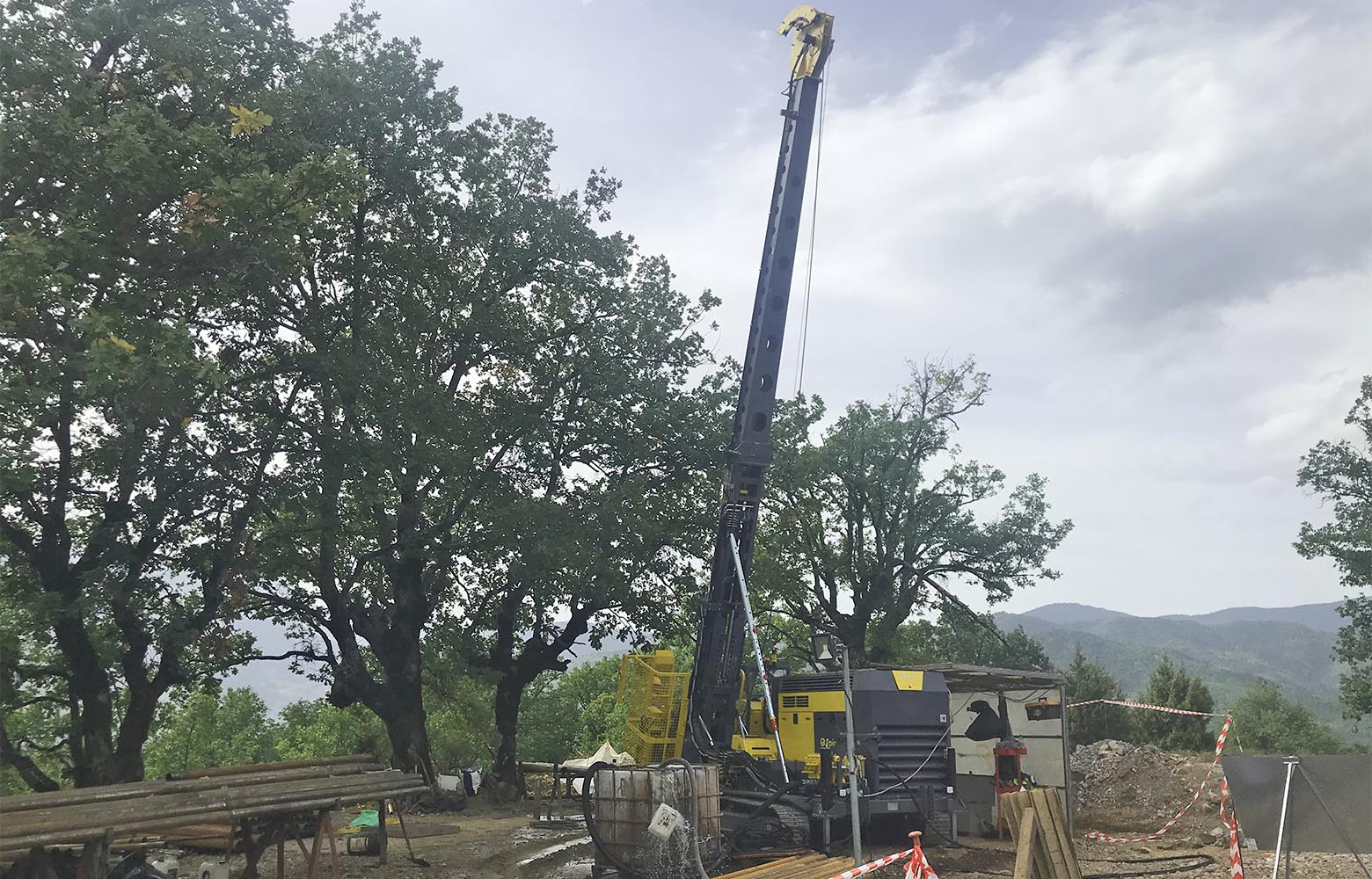

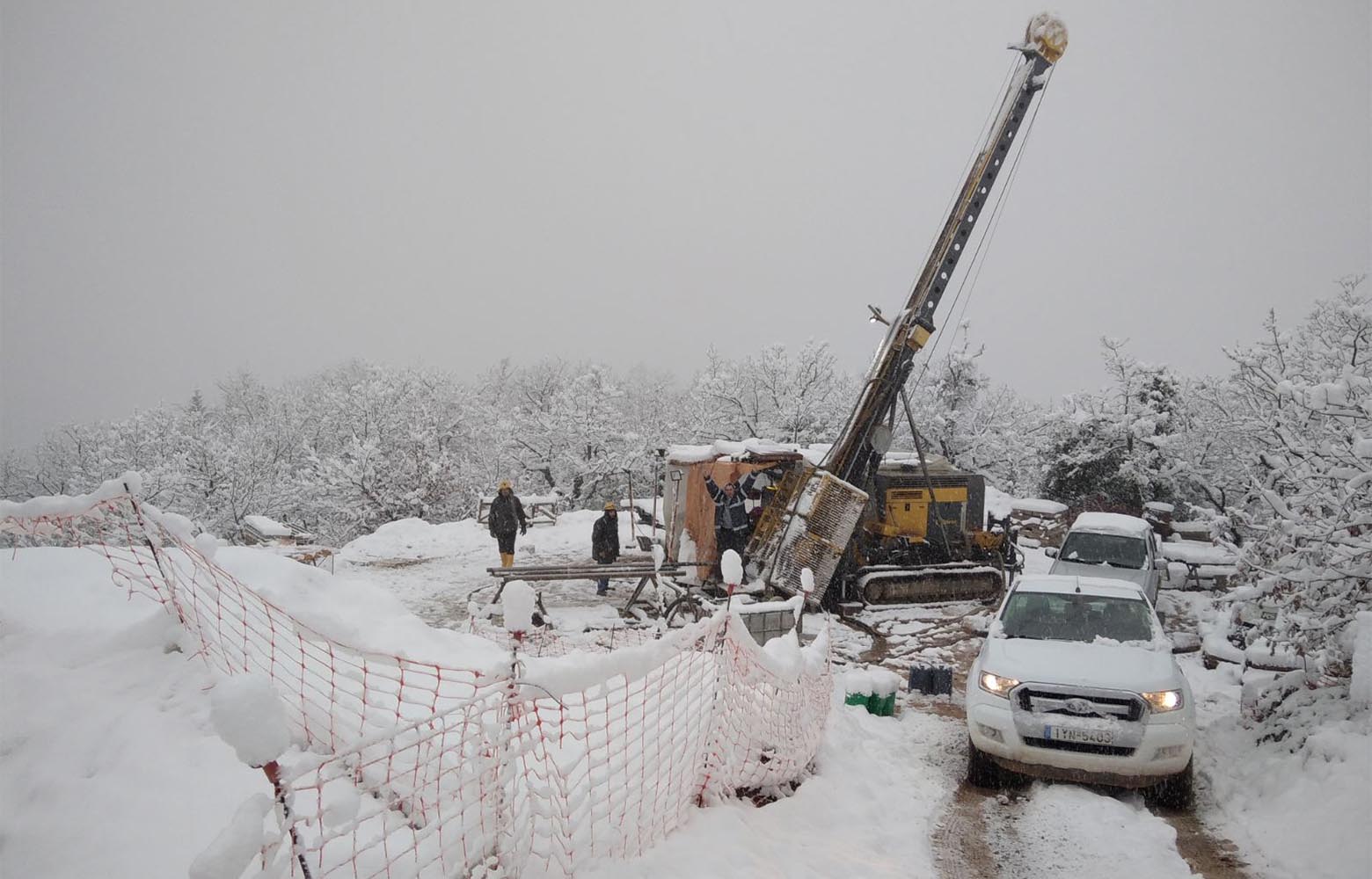

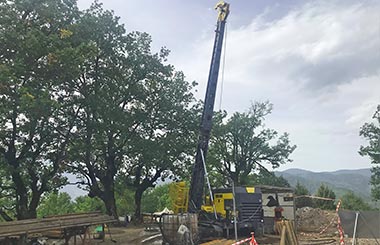

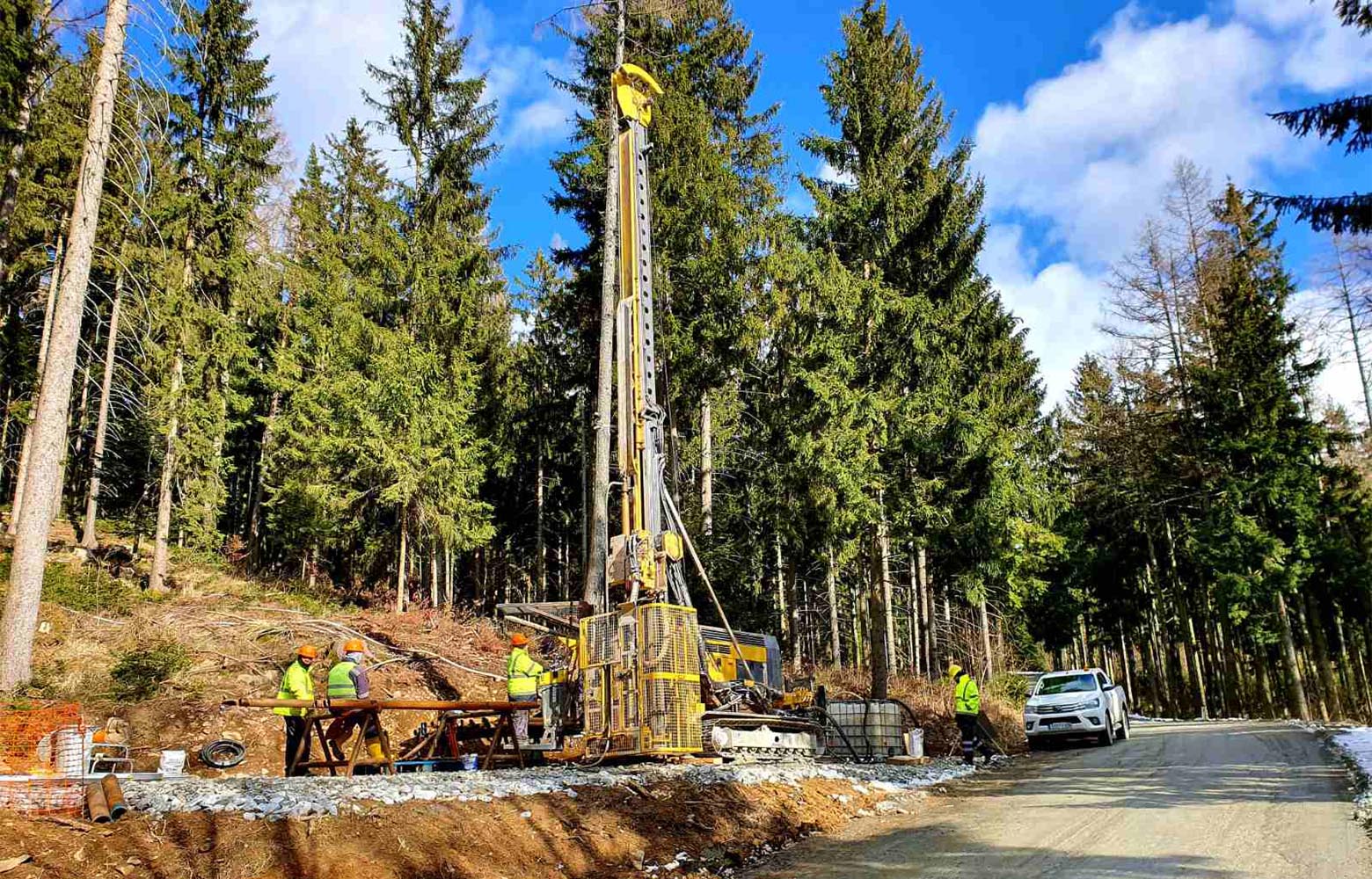

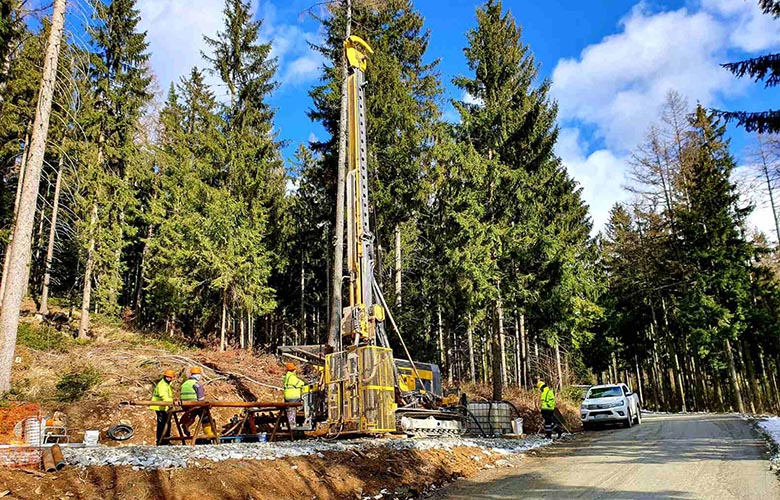

Rig Description
The Christensen surface core drilling rigs have a well-earned reputation for reliability when it comes safety and performance. Large core samples, a gear driven rotation unit and a constant penetration rate allow the Christensen 140 to boost your productivity and profits. The durable Christensen 140 rig is also designed to help you meet tough environmental protection demands anywhere in the world.
- Wireline
- Crawler
- PQ, HQ, NQ
Epiroc Christensen C140 Rig Details Specs
- Cummins QSB 6.7lt Tier 4F 160kW (215hp) RPM : 1800 Diesel turbocharged Cooling : water Rod holding force : 130kN Chuck holding capacity : 178kN Mast pull force : 138kN Mast thrust force : 59.6kN Mud pump : Trido 140H (140lt/min, 64bar) Max Torque (Rotation Unit): 7600Nm Max Speed (Rotation Unit): 1300rpm Drilling Capacity : 1400m (ΝQ) Wireline hoist : 2000m Max drum pull : 13kN Drilling angle : 45 o -90 o
- RPM : 1800
- Diesel turbocharged Cooling : water Rod holding force : 130kN Chuck holding capacity : 178kN Mast pull force : 138kN Mast thrust force : 59.6kN Mud pump : Trido 140H (140lt/min, 64bar) Max Torque (Rotation Unit): 7600Nm Max Speed (Rotation Unit): 1300rpm Drilling Capacity : 1400m (ΝQ) Wireline hoist : 2000m Max drum pull : 13kN Drilling angle : 45 o -90 o
- Cooling : water
- Rod holding force : 130kN
- Chuck holding capacity : 178kN
- Mast pull force : 138kN
- Mast thrust force : 59.6kN
- Mud pump : Trido 140H (140lt/min, 64bar)
- Max Torque (Rotation Unit): 7600Nm
- Max Speed (Rotation Unit): 1300rpm
- Drilling Capacity : 1400m (ΝQ)
- Wireline hoist : 2000m
- Max drum pull : 13kN
- Drilling angle : 45 o -90 o
